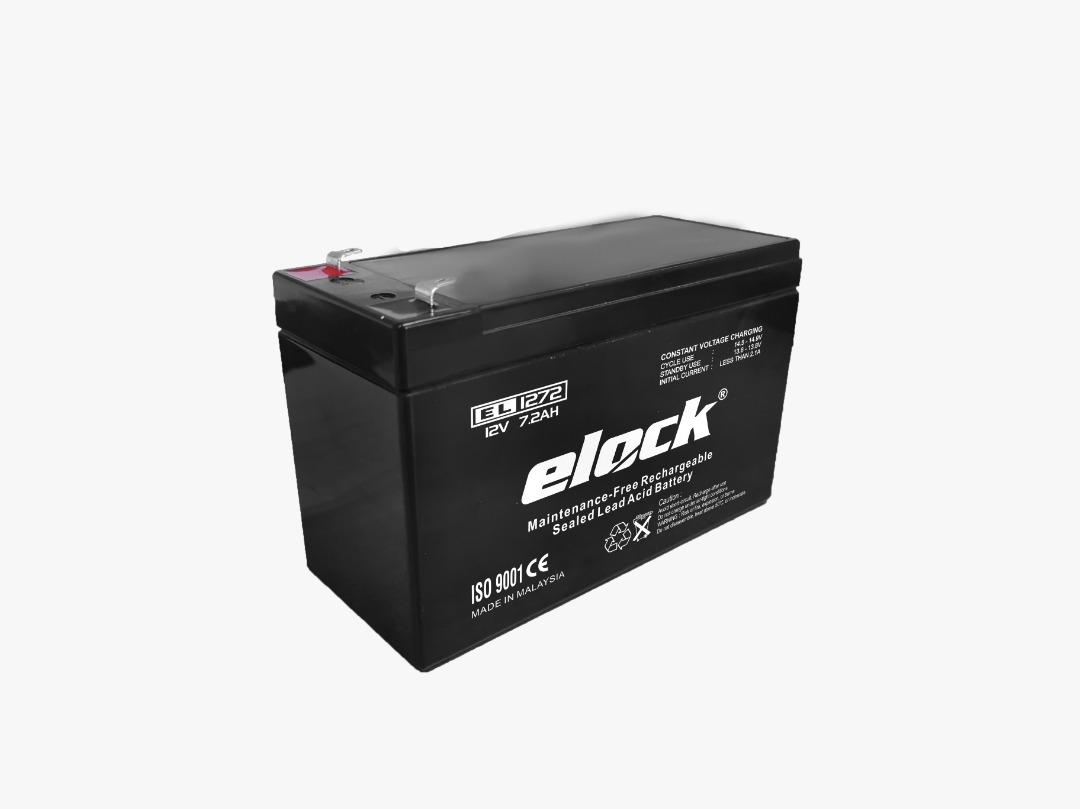

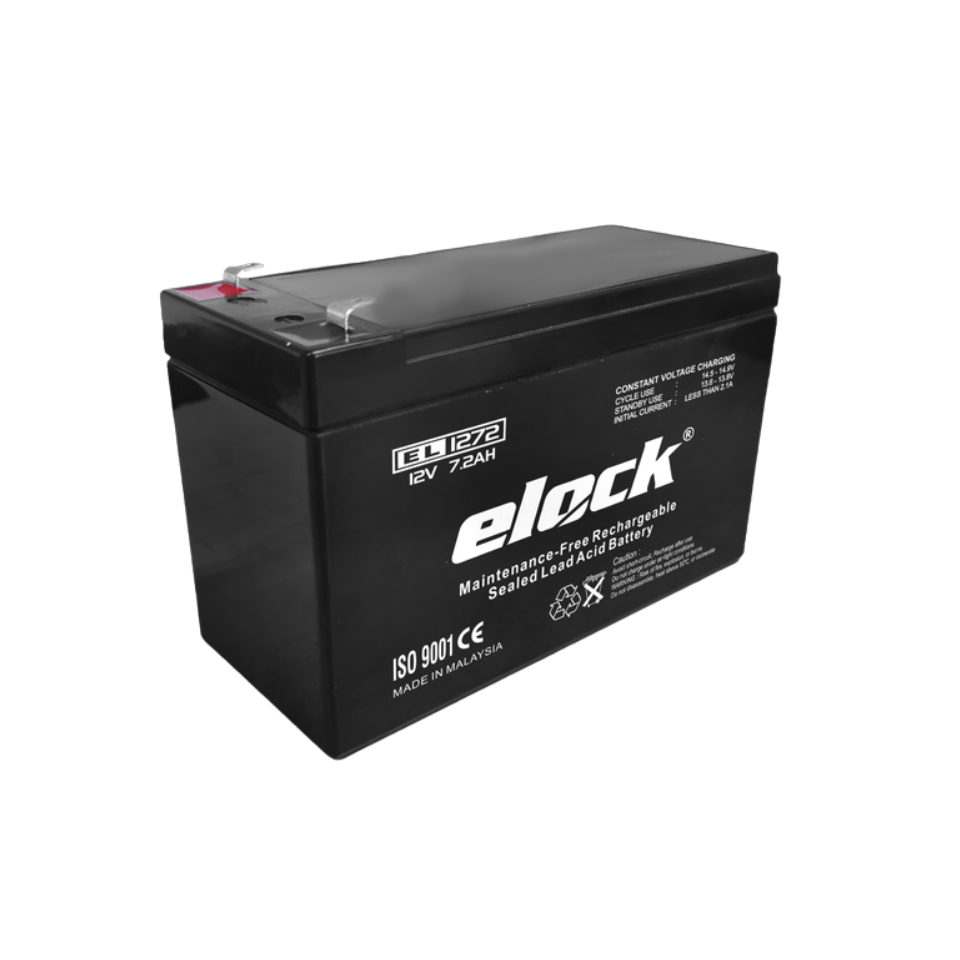

EL-BT100 Backup Battery (12V 7AH)
The EL-BT-100 high capacity backup battery is a long life span and strong reliability rechargeable backup power unit. An ideal backup power supply unit to be used on any devices.
Specification:
- Nominal Voltage: 12 V (6 cells in series)
- Nominal Capacity:
- 20 hour rate F.V. (1.75 V/cell)(350 mA to 10.50 V): 7.0 AH
- 10 hour rate F.V. (1.75 V/cell)(665 mA to 10.50 V): 6.65 AH
- 5 hour rate F.V. (1.75 V/cell)(1190 mA to 10.50 V): 5.95 AH
- 1 hour rate F.V. (1.55 V/cell)(4200 mA to 9.30 V): 4.2 AH
- Approximate Weight: 2.1 kg
- Internal Resistance (Fully Charged Battery):
- Maximum Discharge Current for 5 sec: 105 A
- Maximum Charge Current (A): 2.1 A
- Ambient Temperature:
- Charge: 0° C (32 F) ~ 40° C (104 F)
- Discharge: 20° C (-4 F) ~ 50° C (122 F)
- Storage: 20° C (-4 F) ~ 40° C (104 F)
- Vibration Test: no loss in capacity or performance (2000 cycles/min, 2.5 mm excursion, 2 hrs)
- Case: ABS
- Dimension: 151 mm x 65 mm x 100 mm
Key Features:
- Stagnant acid – enable the rechargeable lead acid to be placed and used discretionary
- Safety, seal – ensure no electrolyte overflow
- No corrosive gas produced
- Safe gas release valve door
- Long life span
- Low self-discharge
- Good instauration function
- Strong reliability
- High capacity
