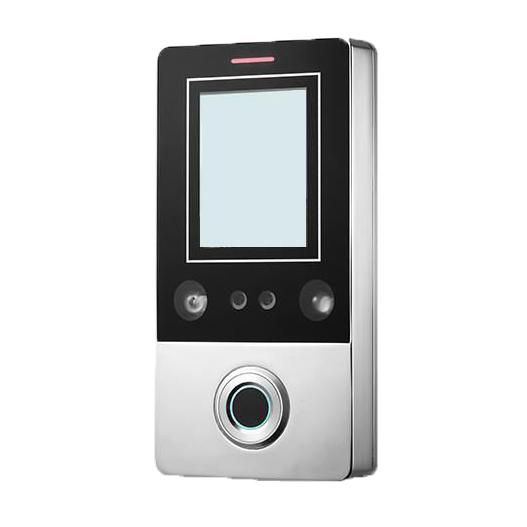

EL-CF1EM Face Recognition Fingerprint Reader
EM face recognition fingerprint reader is fully capable of all the basic access control functionality, vandal proof, weatherproof with stylish design. Ideal for single door access control system.
Specification:
- Input Voltage : 12V DC
- Current Consumption : ≤ 350mA
- Operating Temperature : −40⁰C ~ +60⁰C
- Card Type : 125kHz EM card
- Wiegand Interface : Wiegand 26 bits
- Facial Recognition Distance : 50CM~1Meter
- Indication : Buzzer and LEDs (Red and Green)
- Lock Output Load : ≤ 1A
- User Capacity : 10000 card user | 1000 facial user | 600 fingerprint
- Access mode : card | facial recognition | fingerprint |card+fingerprint | card+facial recognition
- Dimension : 139 x 70 x 22 mm
- Unit Weight : 200g EL-CF1
Key Features:
- Verify via face recognition, fingerprint or ID card
- Standalone device – ideal for single door system, controlling electric lock, security system
- Vandal proof zinc alloy case
- Weatherproof design
- Wiegand26 Output
- Infrared remote control operation
- Multiple access mode operation
