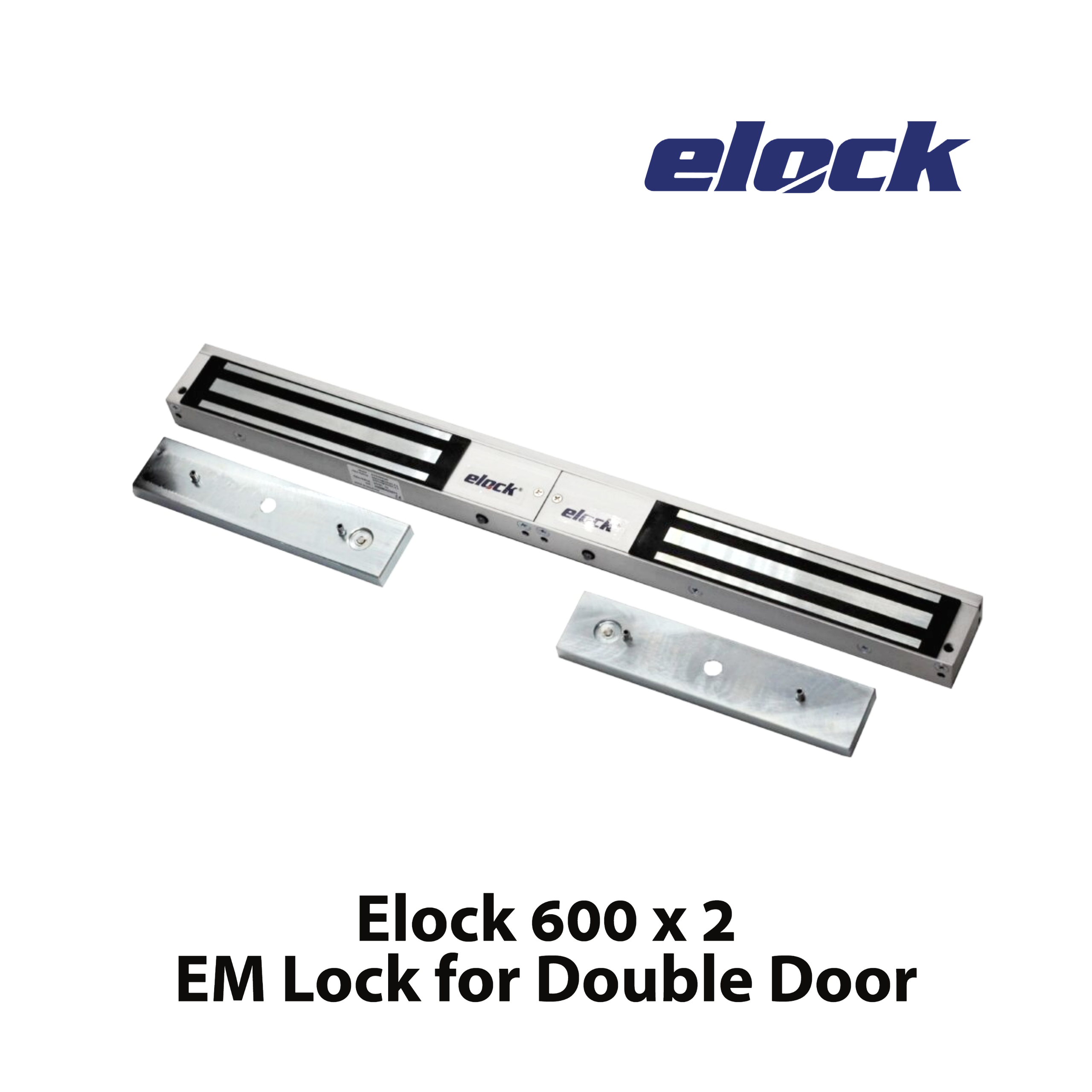

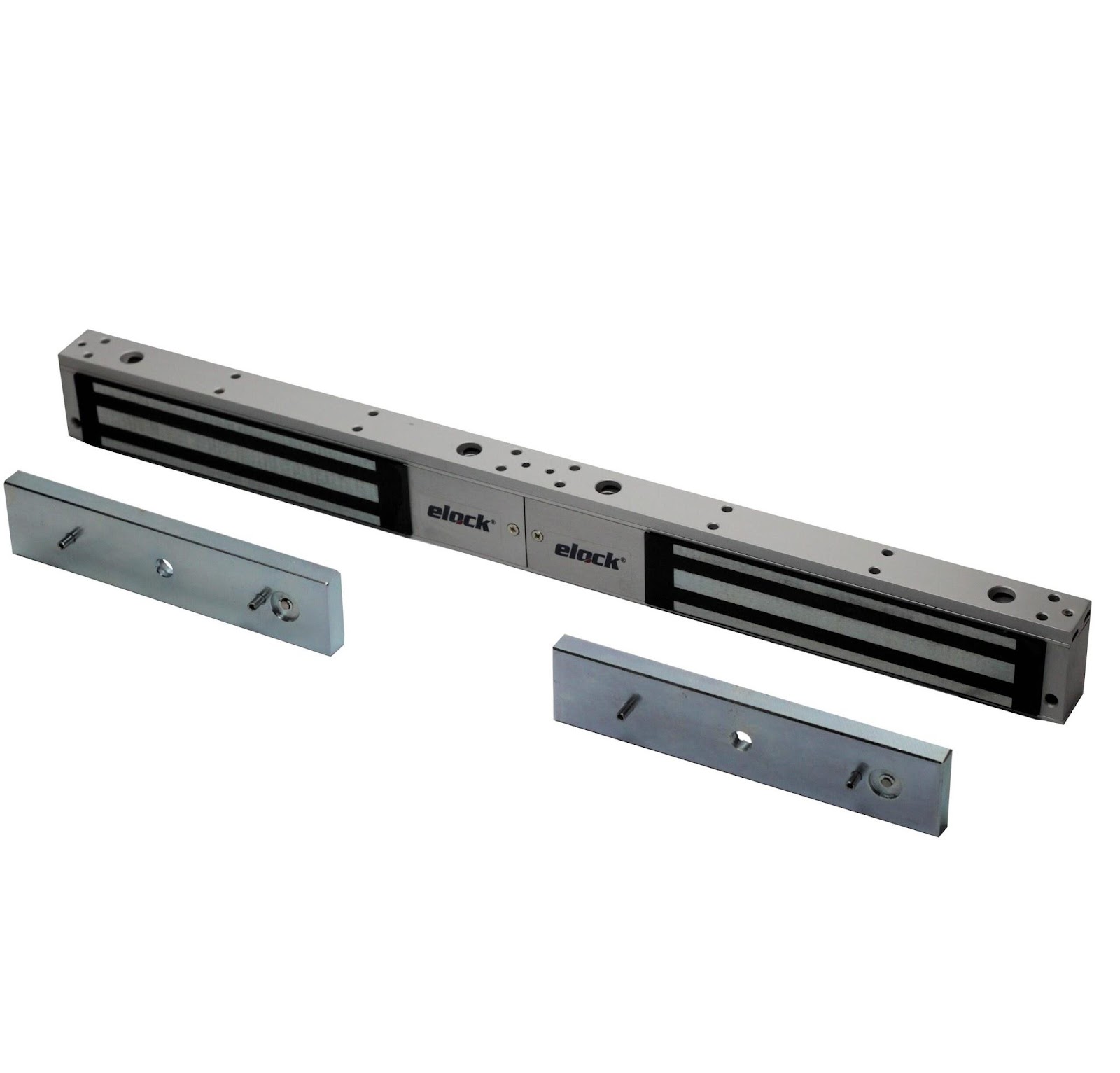

ELOCK-600 x 2 EM Lock

The Elock-600×2 is specially designed for dual leaf doors. Capable of holding doors up to 600lbs on each leaves.

Specification:

  • Holding Force: 2 x 600lbs
  • Operating Voltage: Dual voltage 12V/24VDC
  • Current Consumption: 2 x (500mA/250mA)
  • Lock Type: Fail-safe type
  • Dimension: 250mm x 41mm x 26mm
  • MOV surge protection
  • Push-off button on armature for instant release
  • Optional Accessories: EL-BK-L600x2 L Bracket; EL-BK-Z600x2 ZL Bracket
  • Product Code : ELOCK-600 x 2

Download Our Data Sheet Here
