EM Lock Access Control with Remote Control elock-600-RC

This kit is special for customers that do not want to physically get up to open the door. With this system, you will be able to let people come in by clicking on the RF remote. The remote communicates with the receiver, which can program up to 2 remotes, and it has a range of 100 feet.

Specifications:

  • Electric Magnetic Lock
  • Holding Force : 600lbs
  • Operating Voltage : 12VDC
  • Current Draw : 12VDC@500mA
  • Fail Safe Type
  • MOV Surge Protection
  • Push Off Button On Armature For Instant Release
  • Magnet Dimension : 250(L) mm X 41(W) mm X 26(D) mm
  • Armature Plate Dimension : 170(L) mm X 38(W) mm X 11(D) mm

Remote Control –>

  • Working Voltage : 12VDC
  • Working Frequency : 433MHZ
  • Working Temperature : −40⁰C~ +55⁰C
  • DC Encoding Type : Learning Code
  • Wireless Range : 100 Feet In Open Area
  • Adjustable Locking Delay : 5/10/15/20 Seconds
  • Working Mode : Jog, Self-Locking, Interlocking (adjustable), Delay
  • Output Mode : Dry Contact Output (1 Channel)
  • Battery : CR2016 x 2PCS

Wireless Push to Exit Button –>

  • Size : 86mm x 86mm x 12mm
  • Material : ABS Case
  • Frequency: 433MHz
  • Wireless Range: 100 Feet In Open Area
  • Battery : 12V27A x 1PCS

Power Adaptor –>

  • Input Voltage : 220~240VAC
  • Output Rating : 12VDC, 1.2A
  • Dimension : 81mm x 56mm x 55mm

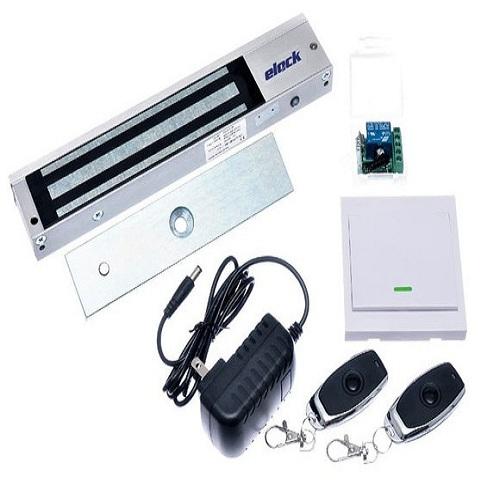

Package Includes:

x1 pc Electric Magnetic Lock 600lbs

x1 pc Receiver Relay Board

x2 pcs Remote Transmitter

x 1pc Wireless Push to Exit Button

x 1pc Power Adapter

x 1pc Female DC Jack Wire
