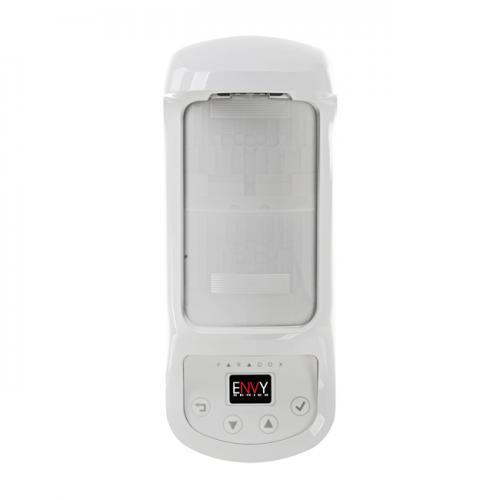

NVX80 Motion Detector with Anti-Mask and SeeTrue

High End Motion Detector with Anti-Mask and SeeTrue™ Technology for Indoor / Outdoor Use

Key Features:

  • Paradox SeeTrue™ technology significantly improves detection response for both IR and microwave (MW) sensor technologies greatly decreasing false alarms.
  • Paradox Active IR anti-mask recognizes the degradation of lens clarity and objects blocking the main lens within 30 cm of the detector.
  • 8 detection channels:

– 2x Quad PIR for short and long range detection (4 channels)

– 1x Independent Quad PIR for Creep Zone Detection (2channels)

– 1x 2-Output MW antenna (2 channels)

  • MW Anti-mask allows for detection of close proximity movements (0.75 m – 2 m / 2.4 ft – 6.5 ft) – this close proximity range is adjustable.
  • Paradox’s proven Pet Immunity active for false alarm rejection in the short and medium detection ranges (note: Creep Zone detection neutralized).
  • 3rd generation Paradox digital detection technology delivering improved detection and false alarm rejection.
  • 15 m x 15 m / 50 ft x 50 ft coverage > 3 m x 3 m / 10 ft x 10 ft Creep Zone protection
  • Easy Slide installation
  • Color OLED display featuring menu-driven, intuitive screens
  • Comprehensive diagnostics: individual testing for PIR, MW and anti-mask technologies
  • SoloTest for easy walk test execution
  • Three configurable relay outputs – these outputs are also reported by the Digiplex EVO bus
  • Sleek, vandal-resistant design and tough construction
  • EN 50131 Grade 3
  • Product Code:AL-NVX80
