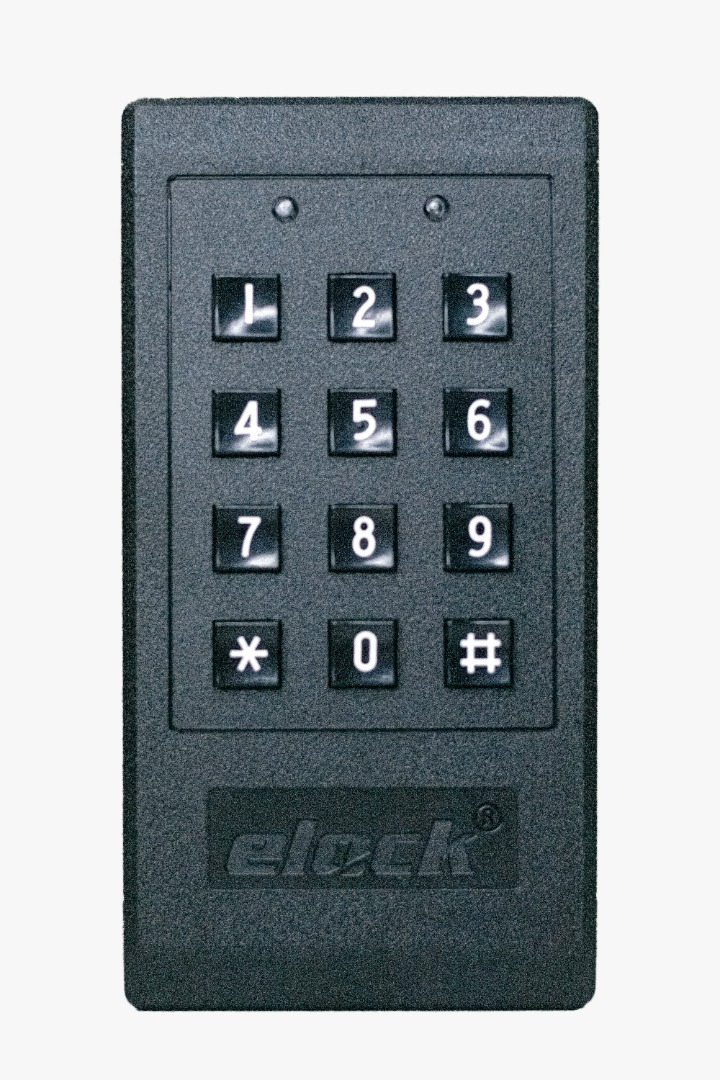

ProAce proximity card reader with integrated keypad EL-RD200
The EL-RD200 is a Radio Frequency Identification (RFID) card reader device with integrated keypad. Suitable to be used along with EL2000 access control system.
Specifications:
- Input Voltage: 9 ~ 16VDC, 12VDC recommended
- Current Consumption: 110 ± 10mA
- Operating Temperature: 0 ~ +66 Degree Celsius
- Carrier Frequency: 125kHz
- Data Format: Wiegand 26 bits & Rosslare keypad format
- Reading Range: 50mm (2 “) max
- Indication: Buzzer and LEDs
- Dimension: 135 x 72 x 28mm
- Unit Weight: 0.20kg
Key Features:
- Built-in transceiver antenna
- 50mm maximum effective reading distance
- Less than 100ms decoding time
- Low power dissipation with single power supply
- Wiegand 26 bits and Rosslare Keypad format
- Controllable LEDs and electronic buzzer
